Ac Drives

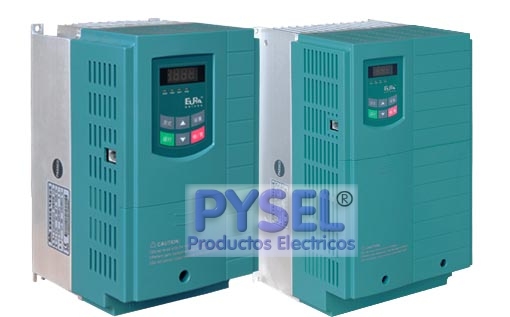

E1000 series

E1000 series of AC drives is our new product. By blocking design, the system function is enriched and built-in EMI filter is optional, advanced EMC design is adopted. The product has the feature of compact in frame, new in shape. E1000 series is a kind of high-quality and multifunction drives that can meet wide-ranging application.

Characteristic
● Auto torque promotion and auto slip compensation realizes larger output torque at low frequency.
● User-defined curve, V/F curve can be adjusted.
● Lower-noise, carrier-wave frequency can be adjusted from 2KHZ to 10KHZ.
● Control protection is immediate and reliable, which improves system stability.
● Built-in filter is optional
● Compatible with NPN and PNP types.
● Output frequency is 0.50-650Hz. The highest resolution is 0.01Hz.



Main function
● Built-in braking unit.
● Built-in EMI filter.
● Kinds of load type: beeline type, square type, under-defined V/F curve type and auto torque compensation type.
● Jogging speed control, multistage speed-control, external analog signal speed control and PC/PLC speed control.
● Standard RS485 communication interface, PC/PLC control by MODBUS communication and several inverters can be operated at the same time.
● Frequency source includes given digit, given analog voltage and given MODBUS, etc.
● With double-polarity NPN and PNP type.
● 6 digital input terminals, each of which can be used as user-defined function terminals. 2 analog input terminals, one of which can be used to input voltage (0~5v, 0~10v) and the other can be used to input current (0~20 mA, 4~20 mA).
● 1 digital output terminal, 1 multifunction relay output terminal and 2 analog output terminals. One of analog terminal can be used to output voltage (0~5v, 0~10v) or current (0~20mA) and the other can be used to output current ((0~20 mA or 4~20 mA).
●  With the twinkling display of preset frequency, running frequency can be easily set before running.
● Current stalling adjusting.
● Built-in DC braking.
E1000 Technical Specifications

Items
Contents
Input
  Rated Voltage Range
3-phase 400V±15%; single-phase 230V±15%
Rated Frequency
50/60Hz
Output
  Rated Voltage Range
3-phase 0~400V;3-phase 0~230V
Frequency Range
0.50~650.0Hz
Control
Mode
Carrier Frequency
2K~10KHz;
Input Frequency Resolution
Digital setting: 0.01Hz, analog setting: max frequency 0.1%
Control Mode
V/F control
Overload Capacity
150% rated current, 60 seconds.
Torque Elevating
Auto torque promotion, Manual Torque Promotion 0.1%~30.0%
V/F Curve
4 kinds of modes: beeline type, square type, under-defined V/F curve and auto torque compensation. .
DC Braking
DC braking frequency: 1.0~5.0 Hz, braking time: 0.0~10.0s
Jogging Control
Jogging frequency range: min frequency~ max frequency, jogging acceleration/deceleration  time: 0.1~3000.0s
Auto Circulating Running and multi-stage speed running
Auto circulating running or terminals control can realize 15-stage speed running.
Built-in PID adjusting
Easy to realize a system for process closed-loop control
Operation Function
Frequency Setting
Potentiometer or external analog signal (0~5V, 0~10V, 0~20mA); keypad (terminal)▲/▼ keys, external control logic and automatic circulation setting.
Start/Stop Control
Terminal control, keypad control MODBUS control.
Running Command Channels
3 kinds of channels from keypad panel, control terminal and MODBUS.
Frequency Source
given digit, given analog voltage, given analog current, given pulse frequency, given MODBUS, PID adjusting and stage-speed control.
Accessorial frequency Source
given digit, given analog voltage, given analog current, PID adjusting and stage-speed control.
Optional
Built-in EMI filter, built-in braking unit, tele-control panel
Protection Function
Input out-phase, input under-voltage, DC over-voltage, over-current, over-load, current stall, over-heat, external disturbance
Display
LED nixie tube showing present output frequency, present rotate-speed (rpm), present output current, present output voltage, present linear-velocity, types of faults, and parameters for the system and operation; LED indicators showing the current working status of inverter.
Environment Conditions
Equipment Location
In an indoor location, Prevent exposure from direct sunlight, Free from dust, tangy caustic gases, flammable gases, steam or the salt-contented, etc.
Environment Temperature

-10℃~+50℃

Environment Humidity
Below 90% (no water-bead coagulation)
Vibration Strength
Below 0.5g (acceleration)
Height above sea level
1000m or below
Applicable Motor
0.2~500KW



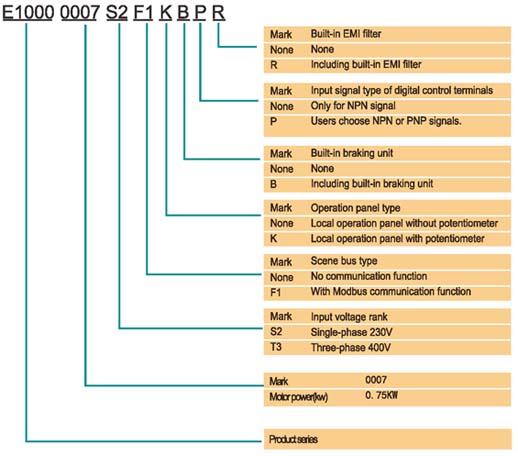

Product summary of E1000

Model
Applicable Motor (kw)
Rated Output Current (A)
Structure Code
Cooling Mode
Remarks
E1000-0002S2
0.2
1.5
E1
Self-cooling
Single-Phase Plastic Hanging
E1000 -0004S2
0.4
2.5
E1
Air-cooling
E1000-0007S2
0.75
4.5
E1
Air Cooling
E1000 -0015S2
1.5
7
E2
Air Cooling
E1000 -0022S2
2.2
10
E3
Air Cooling
E1000 -0007T3
0.75
2
E2
Air Cooling
Three-Phase Plastic Hanging
E1000-0015T3
1.5
4
E2
Air Cooling
E1000-0022T3
2.2
6.5
E2
Air Cooling
E1000-0037T3
3.7
8
E4
Air Cooling
E1000-0040T3
4.0
9
E4
Air Cooling
E1000-0055T3
5.5
12
E5
Air Cooling
E1000-0075T3
7.5
17
E5
Air Cooling
E1000-0110T3
11
23
E6
Air Cooling
E1000-0150T3
15
32
E6
Air Cooling
E1000-0185T3
18.5
38
C3
Air Cooling
Three-phase Metal hanging
(Without built-in filter)
E1000-0220T3
22
44
C3
Air Cooling
E1000-0300T3
30
60
C3
Air Cooling
E1000-0370T3
37
75
C5
Air Cooling
E1000-0450T3
45
90
C5
Air Cooling
E1000-0550T3
55
110
C5
Air Cooling
E1000-0750T3
75
150
C6
Air Cooling
E1000-0900T3
90
180
C6
Air Cooling
E1000-1100T3
110
220
C7
Air Cooling
E1000-1320T3
132
265
C8
Air Cooling
E1000-1600T3
160
320
C8
Air Cooling
E1000-1800T3
180
360
C9
Air Cooling
E1000-2000T3
200
400
CA
Air Cooling
E1000-2200T3
220
440
CA
Air Cooling
E1000 -2500T3
250
480
CB
Air Cooling
E1000 -2800T3
280
530
CB
Air Cooling
E1000 -3150T3
315
580
CB
Air Cooling
E1000 -3550T3
355
640
CB
Air Cooling
E1000-1100T3D
110
220
D0
Air Cooling
Three-phase Metal cabinet
(Without built-in filter)
E1000-1320T3D
132
265
D1
Air Cooling
E1000-1600T3D
160
320
D1
Air Cooling
E1000-1800T3D
180
360
D1
Air Cooling
E1000-2000T3D
200
400
D2
Air Cooling
E1000-2200T3D
220
440
D2
Air Cooling
E1000 -2500T3D
250
480
D3
Air Cooling
E1000 -2800T3D
280
530
D3
Air Cooling
E1000 -3150T3D
315
580
D3
Air Cooling
E1000 -3550T3D
355
640
D3
Air Cooling
E1000-4000T3D
400
690
D4
Air Cooling
E1000-4500T3D
450
770
D5
Air Cooling
E1000-5000T3D
500
860
D5
Air Cooling
E1000-0185T3R
18.5
38
E7
Air Cooling
Three-phase Metal hanging
(R means  built-in EMI filter is included)
E1000-0220T3R
22
44
E7
Air Cooling
E1000-0300T3R
30
60
E7
Air Cooling
E1000-0370T3R
37
75
E8
Air Cooling
E1000-0450T3R
45
90
E8
Air Cooling
E1000-0550T3R
55
110
E8
Air Cooling
E1000-0750T3R
75
150
E9
Air Cooling
E1000-0900T3R
90
180
E9
Air Cooling



Structure List
Note 1: the unit is mm.

Structure Code
External Dimension
[A×B(B1)×H]note1
Mounting Size(W×L)
Mounting Bolt
Remarks
E1
80×135(142)×138
70×128
M4
Plastic Housing
E2
106×150(157)×180
94×170
M4
E3
106×170(177)×180
94×170
M4
E4
138×152(159)×235
126×225
M5
E5
156×170(177)×265
146×255
M5
E6
205×196(202)×340
194×330
M5
E7
271×235×637
235×613
M6
Metal Housing
E8
360×265×901
320×876
M8
E9
420×300×978
370×948
M10
C3
265×235×435
235×412
M6
C5
360×265×555
320×530
M8
C6
410×300×630
370×600
M10
C7
516×326×760
360×735
M12
C8
560×326×1000
390×970
M12
C9
400×385×1300
 280×1272
M10
CA
535×380×1330
 470×1300
M10
D0
580×500×1410
410×300
M16
Metal Cabinet
D1
600×500×1650
400×300
M16
D2
660×500×1950
450×300
M16
D3
800×600×2045
520×340
M16
D4
1000×550×2000
800×350
M16
D5
1200×600×2200
986×400
M16



E1000 Basic Wiring Diagram
